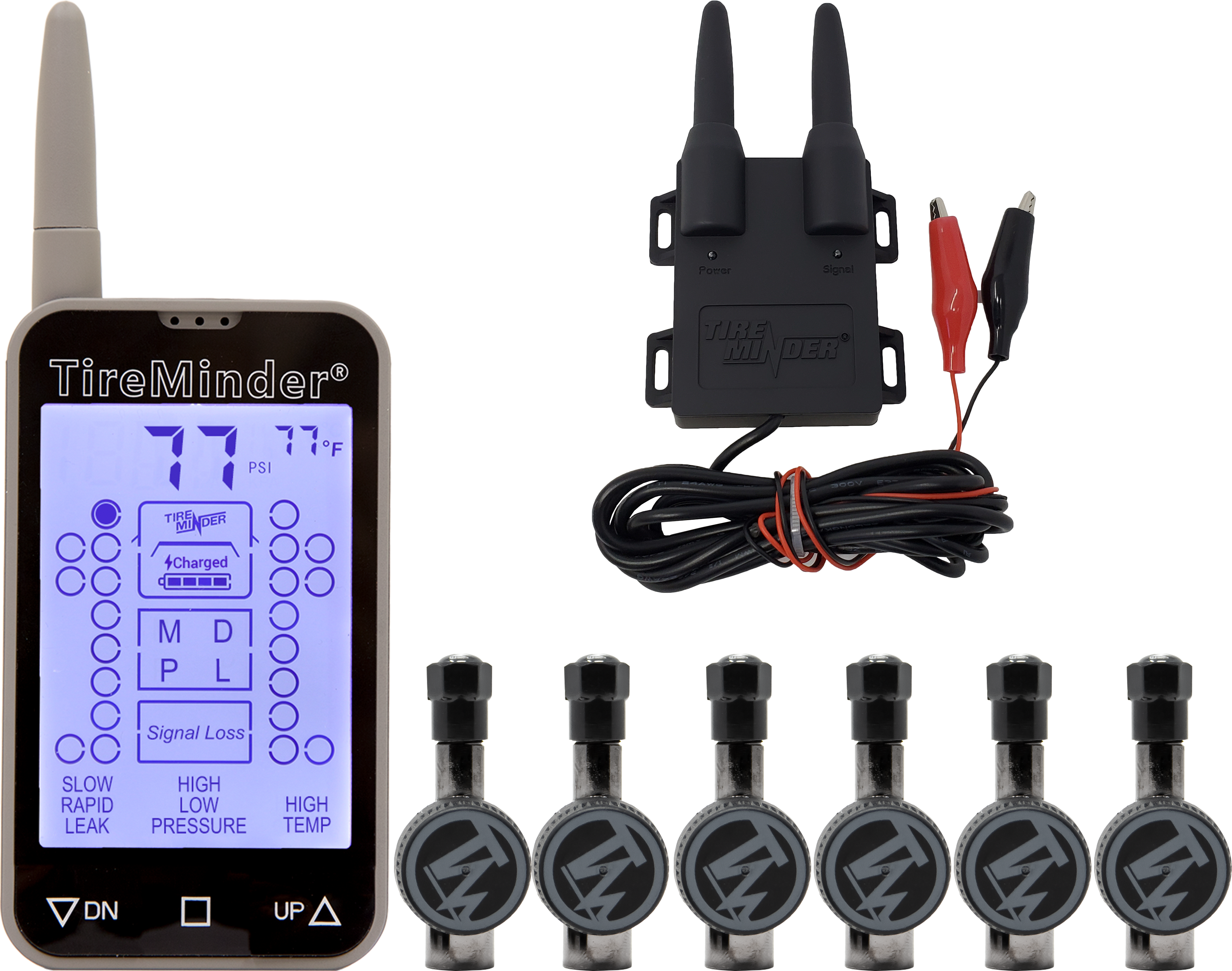

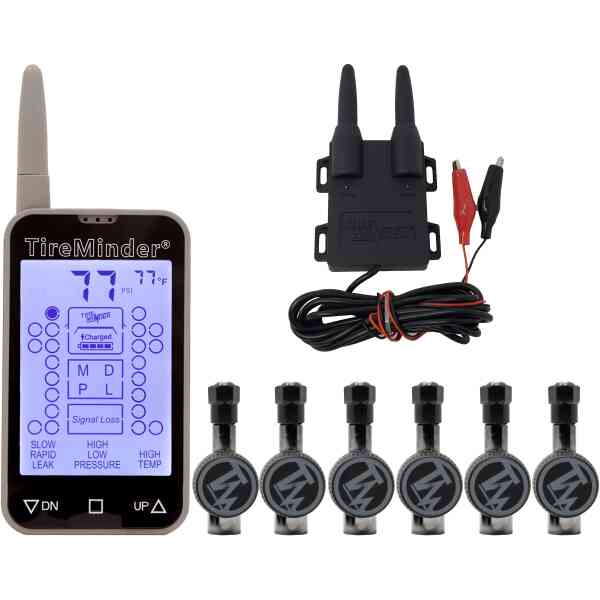

The TireMinder TM-77 RV Tire Monitoring System makes it easy to stay informed of any tire pressure or temperature issues you may have on your RV, motorhome, 5th wheel, or trailer. The TireMinder TM-77 features a large display, an extra strength signal booster and 6 flow through transmitters.

The large, crystal clear, 3.25″ display provides simultaneous pressure and temperature readings and allows you to automatically scroll through each tire position with the push of a button. An upgraded high-power antenna and Rhino signal booster deliver maximum signal strength. The Multi-Vehicle Disconnect (MVD) allows for up to 3 separate vehicles to be added and exchanged in just a few clicks.

Transmitters on the valve stems check for tire issues every 6 seconds. If no issue is found, transmitters send updated pressure and temperature readings every four minutes. Display provides both visual and audible alarms, including blowout alarm, high-temperature alert (at 167°F), low and high-pressure alerts (15% below and 20% above baseline), and fast and slow leak alerts (3 psi or more in 2 minutes or less and 6 psi or more in 10 minutes or less).

New TireMinder Flow Through Transmitters Included. With TireMinder’s new flow through transmitters, you can now add air to your tires without removing the transmitters. They are also incredibly light at only 0.7 ounces, removing the need to rebalance your tires!

System Features:

• Large, crystal-clear 3.25″ display
• Monitors up to 22 tires (0 to 232 PSI); extra transmitters sold separately.
• Simultaneous pressure and temperature readings
• Automatically scrolls through each tire position with the push of a button
• Multi-Vehicle Disconnect (MVD) allows for up to 3 separate vehicles to be added and exchanged in just a few clicks
• Upgrade High Power Antenna
• Visual and audible alarms
• Blow-out alarms
• Signal booster included for optimal signal strength
• Transmitters check for tire issues every 6 seconds
• Transmitters send updated pressure and temperature readings every 4 minutes (if no issue found)
• Fast and slow leak alerts (3 PSI or more in 2 minutes or less and 6 PSI or more in 10 minutes or less)
• Low- and high-pressure alerts (15% below baseline and 20% above baseline)
• High-temperature alert (alerts at 167° F)
• Replaceable CR1632 batteries
• Rechargeable monitor with battery indicator
• Single-action memory delete
• Auto-Search function allows the TM-77 to receive updated pressure and temperature readings at a push of a button
• Rapid Connect
• Lightweight 0.7-oz. flow through transmitters
• Includes Free TireMinder Battery Replacement Program through 2028
• Award-winning customer support based in USA

Kit Includes:

• 1 TireMinder TM-77 Monitor
• 6 TireMinder Flow Through Brass Transmitters (for use with brass or steel valve stems)
• 1 Hard-Wired Rhino Signal Booster with Alligator Clips
• 12 CR1632 Batteries
• 1 Mounting Bracket
• 1 Micro USB Cable and DC Charger
• 6 Anti-Theft Locking Nuts
• 1 Wrench with Valve Core Tool
• 6 Additional O-Rings
• 1 User Manual
• 1 Warranty Card
• 1 TireMinder Pouch



Specifications:

Part No.	TM22168
Monitor Screen Size	3.25” diagonal
Monitor Color	Standard monochrome display
Transmitters Included	6 flow through transmitters
Signal Booster Included	1 high powered signal booster
Max Tires Simultaneously Monitored	22 at the same time
Max Vehicles Simultaneously Monitored	3 at the same time
Total Monitorable Vehicles	3 in total
Transmitter Weight	0.7 ounces with battery installed
Transmitter Battery	CR1632 (replaceable)
Tire Issue Parameters	Pressure loss of 3 PSI or more in less than 2 minutes. Pressure loss of 6 PSI or more in 2 to 10 minutes. Pressure loss of 15% or more of the baseline pressure. Pressure increase of 20% or more of the baseline pressure. Internal tire temperature of 167°F (75°C). Internal tire temperature that exceeds 185°F (85°C).
Valve Stem Compatibility	Compatible with all RV valve stems including rubber, brass, nickel-plated brass, and steel valve stems. If using with rubber valve stems, ensure that it is a high-quality valve stem with no cracking or quality issues.
Estimated Installation Time	10 to 15 minutes
